Conquer the Road With Your DIY Mudflap Hangers

Mudflap hangers might look like simple metal bars, but they hold up the shields that keep your rig clean and legal. Pick the wrong ones, and you face rust, wobbles, or fines. Get them right, and your truck stays sharp mile after mile. This guide walks you through choosing, installing, and caring for mud flap hangers with tips straight from US TRUCK GOAT’s 20-plus years in the game. Let’s roll.

Why Mudflap Hangers Matter More Than You Think

Trucks throw rocks, water, and grime everywhere without mudflaps. Hangers keep those flaps in place. A solid mud flap hanger bracket stops sway on rough roads and meets DOT rules in most states. US TRUCK GOAT started bending steel in Suzhou back in 1999. Today, they ship hangers across North America and Europe, all built under ISO 9001 standards. Their line-up includes angled, straight, and tapered styles, plus quarter-fender sets for any semi.

Step 1: Choose the Right Mud Flap Hangers

Match the Weight to Your Load

Heavy hauls need beefy steel. The XKJ-MFH-01-SS-1/8 angled heavy-duty set weighs 9.1 kg net per pair and handles full trailers without bending. Lighter runs? Try the XKJ-MFH-SBK straight bar kit at 5.54 kg net. It saves weight yet stays stiff.

Pick the Style for Your Truck

Angled hangers like the XKJ-MFH-Q1C push flaps back for tight turns. Straight bars such as the XKJ-MFH-03-1/8 keep things simple on box trucks. Tapered models, think XKJ-MFH-02-1/2, give a sleek drop. US TRUCK GOAT offers black powder-coat or stainless finishes to fight rust.

Check the Fit

Measure from the frame rail to the ground. Most hangers drop 24 to 30 inches. The XKJ-MFH-S2C support bar fits semi-trailers with 80.5 × 23 × 8.5 cm cartons for easy stacking. Need reflectors? Grab the XKJ-MFH-QBK with built-in plates for night visibility.

Budget Without Skimping

Wholesale buyers love US TRUCK GOAT’s prices. A pair of black XKJ-MFH-02-1/8 hangers ships at 8.8 kg gross, carton 81.5 × 27.5 × 10.5 cm, ready for pallets. Quality steel keeps costs low long-term.

Step 2: Install Mudflap Hangers Like a Pro

Gather Basic Tools

You need a ratchet set, torque wrench, drill, and safety glasses. Most kits bolt on in under an hour.

Prep the Frame

• Clean rust off the rail.
• Mark holes with a center punch.
• Drill pilot holes to avoid cracks.

Bolt It On

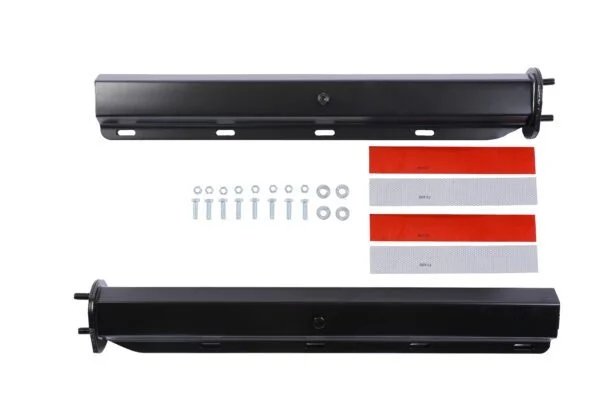

• Slide the mud flap hanger bracket into place.
• Use grade-8 bolts and lock nuts.
• Torque to 60 ft-lb on 1/2-inch bolts, 45 ft-lb on 3/8-inch. The XKJ-MFH-03-SS-1/2 stainless set comes with hardware that resists salt.

Hang the Flap

Slide a 24×30 PB mudflap (XKJ-MF30PB-3, 3.6 kg net) onto the bar. Clamp tight. Check clearance—flaps should sit 6 inches off the ground when loaded.

Test Drive

Hit a gravel lot at 20 mph. Listen for rattles. Adjust if the flap slaps the tire.

Step 3: Keep Mud Flap Hangers Road-Ready

Wash Weekly

Road salt eats steel. Hose off grime, then wipe with WD-40. Stainless XKJ-MFH-02-SS-1/8 pairs laugh at corrosion.

Inspect Monthly

• Look for cracks near welds.
• Tighten loose bolts.
• Replace bent bars before they snap.

Touch Up Paint

Scratches invite rust. Sand, prime, and spray black enamel. Powder-coat lasts longer but needs a shop.

Store Smart

Stack cartons flat. The XKJ-QFS24BK quarter-fender posts pack in PE bags at 1.93 kg each—perfect for warehouse shelves.

Real-World Wins from the Shop Floor

A fleet in Ohio swapped cheap hangers for XKJ-MFH-S3C heavy-duty bars. Breakdowns dropped 60 % in one winter. A custom painter in Texas bolted on XKJ-MFH-Q3C angled hangers with reflectors—zero tickets in two years. Drivers say the 7.75 kg net weight feels solid, not bulky.

FAQ About Mudflap Hangers

What’s the difference between a mudflap hanger and a mud flap hanger bracket?

Same thing, different words. “Mud flap hanger bracket” just sounds more technical. Both hold the flap.

Do I need spring-loaded hangers?

Only for constant flex, like off-road dumps. Standard XKJ-MFH-01-1/8 bolts work fine for highway rigs.

Can I weld instead of bolting?

Welding voids warranties and cracks frames over time. Stick to bolts.

How thick should mudflaps be?

3 mm for light duty, 6–7 mm for rocks and ice. XKJ-MF36FB-7 at 7 mm eats gravel.

Will stainless steel hangers rust in salt states?

Eventually, but way slower than mild steel. Coat bolts with anti-seize.

What if my trailer frame is aluminum?

Use isolator pads to stop galvanic corrosion. US TRUCK GOAT includes them with some kits.

How many hangers per axle?

Two per side, one flap each. Doubles need four total.

Can I cut hangers to fit?

Never. Shortening weakens the metal. Order the right drop.

Do reflectors count toward DOT tape rules?

Extra reflectors help, but you still need full conspicuity tape on the trailer.

Where do I buy replacements fast?

US TRUCK GOAT stocks everything from XKJ-MFS-Q24AL reflector plates (0.5 kg net) to full quarter-fender sets. Bulk orders ship the same week.

Wrap-Up: Drive Confident

Solid mudflap hangers keep your truck legal, clean, and proud. Measure once, bolt tight, wash often. US TRUCK GOAT’s ISO 9001 line—from 5.54 kg straight bars to 9.1 kg angled bruisers—fits every rig and budget. Grab a catalog, pick your style, and hit the road knowing the grime stays behind you.
