Ideal Mud Flap Height for Semi Trucks: Safety and Compliance Guide

Understanding Mud Flap Basics on Semi Trucks

Mud flaps play a key role in keeping roads safer for everyone. They stop rocks, water, and debris from flying off tires and hitting other vehicles. For semi trucks, these flaps must hang at the right height to work well without causing problems. Federal rules in the United States require mud flaps to cover the full width of the tires and hang no more than a certain distance from the ground. This setup reduces spray and protects the truck’s undercarriage.

Drivers often wonder about the exact measurement. The Department of Transportation sets standards that most states follow. Mud flaps should typically sit 6 to 8 inches above the road surface when the truck is loaded. This distance allows enough clearance to avoid scraping on uneven roads while still blocking debris effectively. Too low, and the flaps drag and wear out fast. Too high, and they fail to catch the spray.

At US TRUCK GOAT, we focus on parts that meet these needs. Our company started in Suzhou in 1999 as a family factory and shifted to foreign trade in 2020. We specialize in iron components, cast iron, and stamped steel bases for truck fender accessories aimed at North America. ISO 9001 certification backs our quality, and we serve markets there and in Europe with a strong supply chain.

Why Height Matters for Performance and Safety

Proper height keeps mud flaps functional over time. When set correctly, they shield following cars from dangerous projectiles. Studies show that well-placed flaps cut down on windshield cracks and paint damage from road grit. For semi trucks hauling heavy loads, this protection extends to the trailer and cargo.

Consider the physics involved. Tires spin at high speeds, flinging water and stones upward in an arc. Flaps positioned too far up miss much of this arc, letting debris escape. On the flip side, flaps touching the ground create drag, increase fuel use, and lead to quick breakdown. Balanced height maintains efficiency.

Our durable products stand up to harsh conditions. We offer mud flap hangers built from premium stainless steel for corrosion resistance. These come in angled, straight, and tapered styles to fit various setups. For example, angled designs improve coverage on curved trailers.

Legal Requirements Across Regions

Rules vary by location, but core guidelines remain similar. In the US, FMCSA regulations mandate that mud flaps extend to within 8 inches of the ground on highways. Some states tighten this to 6 inches or less for better spray control. Canada follows close standards, often requiring flaps to cover the tire tread fully.

Europe emphasizes environmental protection. EU directives push for flaps that minimize water dispersion to reduce aquaplaning risks for other drivers. Non-compliance brings fines, inspections, or even vehicle impoundment. Truck owners must check local laws before long hauls.

US TRUCK GOAT helps with compliant parts. Our mud flap brackets for semi trucks include options with reflective plates for added visibility at night. This feature meets safety codes in many areas.

Factors That Affect Ideal Mud Flap Height

Several elements influence the best setup. Truck suspension type changes ride height under load. Air-ride systems compress more than spring setups, so flaps need adjustable hangers. Tire size also plays a part. Larger diameters require longer flaps to maintain coverage.

Road conditions matter too. Off-highway routes with potholes demand extra clearance to prevent tears. Urban driving allows closer positioning since surfaces stay smoother. Weather adds complexity; rainy areas benefit from lower hang heights to cut spray volume.

Load weight shifts everything. An empty trailer sits higher, potentially lifting flaps too far. Full loads lower the chassis, risking ground contact. Regular checks during pre-trip inspections catch these changes.

How to Measure and Adjust Mud Flaps Correctly

Start with the truck parked on level ground. Measure from the pavement to the flap’s bottom edge. Aim for 6 to 8 inches as a starting point. Use a tape measure for accuracy, and check both sides since uneven wear occurs.

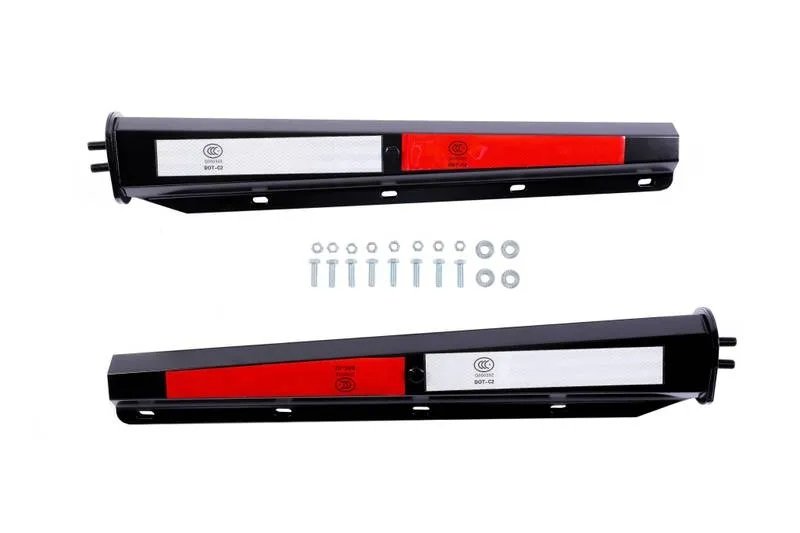

Adjustment relies on quality hangers. Our semi truck mud flap hangers feature spring-loaded mechanisms for easy tweaks. Loosen bolts, slide to the desired spot, and tighten securely. Spring types absorb shocks, extending part life.

Test after changes. Drive at moderate speeds on a wet road if possible. Watch for spray patterns in the mirrors. Minimal mist behind the tires signals success. Recheck after 100 miles, as parts settle.

Choosing the Right Hangers for Your Semi Truck

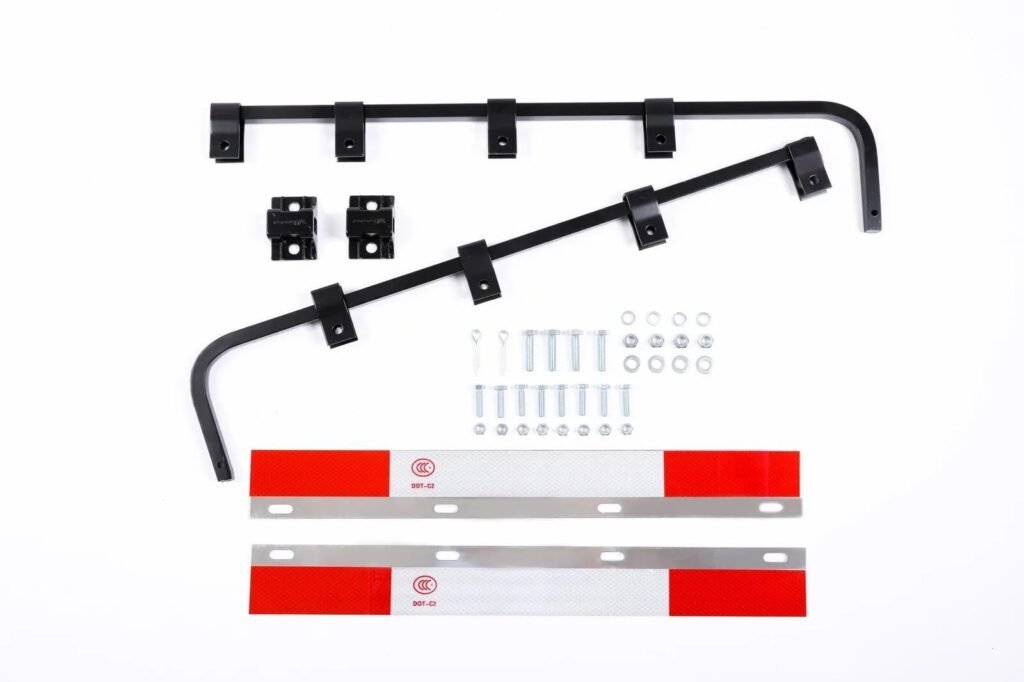

Select based on truck model and usage. Heavy-duty hauls need robust steel construction. Our Black Mud Flap Hangers (Pair) with SKU XKJ-MFH-02-1/8 weigh 8.3 kg net per set and fit many semis. Carton size of 81.5 × 27.5 × 10.5 cm eases shipping.

Angled hangers suit trailers needing better debris deflection. Straight versions work for flatbed operations. Tapered styles offer ground clearance on low riders. Support bars add stability for long-haul rigs.

We provide competitive prices for bulk buys. Over 20 years in the industry have built our reputation for reliable supply.

Installation Tips for Long-Lasting Setup

Clean mounting areas first to remove rust or dirt. Align hangers parallel to the frame for even weight distribution. Torque bolts to manufacturer specs to avoid vibration looseness.

Add anti-seize compound on threads for future adjustments. Inspect welds and coatings upon receipt. Our products use high-grade materials to resist weather damage.

Pair with quality mud flaps. Black polymer options in 24×24 to 24×36 inches feature anti-splash patterns. Thickness from 3mm to 7mm handles impacts well.

Maintenance to Keep Flaps at Optimal Height

Inspect monthly for bends or cracks. Clean with mild soap to preserve reflectivity. Replace worn hardware promptly.

In winter, clear ice buildup that alters height. Summer heat can warp cheap plastics, so choose UV-resistant materials. Our aluminum reflector plates, like SKU XKJ-MFS-Q24AL at 0.5 kg, stay lightweight and tough.

Track mileage between checks. High-mileage fleets benefit from scheduled service.

Benefits of Proper Mud Flap Positioning

Correct height cuts maintenance costs. Less debris reaches brakes and lights, reducing repairs. Fuel savings come from lower drag.

Safety improves overall. Fewer accidents from flying objects mean lower insurance rates. Professional appearance boosts company image.

Our quarter fender sets, such as SKU XKJ-QFS24BKLS at 7.07 kg net, complement flaps for full protection.

FAQ

What is the standard mud flap height for semi trucks in the US?

Most regulations require 6 to 8 inches from the ground when loaded. Check the state DOT for specifics.

Can I use fixed hangers for varying loads?

Adjustable or spring-loaded types work better. They adapt to suspension changes.

Do reflective strips affect height requirements?

No, but they enhance safety. Our semi–trailer mud flap bracket options include them.

How often should I adjust mud flaps?

After load changes or every 5,000 miles. Inspect for wear.

Are plastic or rubber flaps better for height stability?

Rubber flexes more, maintaining contact better on rough roads.
