Out on the roads of North America, keeping trucks visible isn’t just about safety – it’s required by law. Moving into 2026, agencies like DOT and NHTSA still demand high levels of awareness behind vehicles to cut down rear-end crashes. For those running large fleets or supply networks, meeting these rules becomes key when handling danger and doing right by the community. Every semi-trailer must carry first-class reflective coatings so crashes don’t spiral out of control while companies avoid huge legal penalties and fines for failing to comply.
The Regulatory Framework: Understanding FMVSS 108
The cornerstone of truck visibility in North America is Federal Motor Vehicle Safety Standard (FMVSS) 108. This regulation dictates the performance and placement of all lamps, reflective devices, and associated equipment for motor vehicles.
What is DOT-C2 Certification?
A flash on the road – reflective tape used on big rigs needs to stretch at least two inches across. Markings like “DOT-C2” show it meets strict shine standards set by Washington. Without those words, ordinary labels fail the test entirely. Federal rules say only marked tape meets safety lights rules. Putting on nameless rolls risks fines when officers check vehicles. Trucks without approved strips often get towed or shut down fast.
Durability and ESG in Fleet Operations
When looking at ESG factors, selecting long-lasting parts supports both social responsibility and lower environmental impact. Durable goods reduce the need for constant repairs because they withstand extreme conditions without failing quickly. Fewer replacements mean less waste overall over time.
Precise Placement: Where and How to Apply Reflective Elements
Regulations are highly specific about where the red and white alternating pattern must be visible on a trailer. While the tape is not always applied directly to the rubber mud flap itself, the area surrounding the mud flap is critical for compliance.
Side Requirements
· Coverage: At least 50% of each side of a trailer must be covered by reflective tape.
· Positioning: The tape should be placed as horizontally as possible, starting as close to the front and rear as possible.
· Consistency: While the 50% coverage does not need to be a continuous strip, the gaps must be even to clearly define the trailer’s length to other drivers.
Rear Requirements
The rear of the truck is the most vulnerable area for collisions. The law requires:
· Bottom Strip: A continuous red and white strip across the full width of the trailer. This is often mounted on the rear impact guard (ICC bar) or the lower frame directly above or integrated with the mud flap assembly.
· Upper Corners: Two pairs of white “Inverted L” shapes must be placed on the upper rear corners to indicate the trailer’s height and width.
The Role of Hardware: Truck Mud Flap Reflectors and Integrated Brackets
While adhesive tape is standard, modern fleets often utilize hardware-integrated solutions to ensure permanent compliance. This is where truck mud flap reflectors and specialized hangers become essential. Standard tape can peel or degrade due to road salt, oil, and debris. Using a dedicated mudflap reflector plate made of aluminum alloy provides a much more stable and permanent surface for reflective material.
Professional Solutions from US TRUCK GOAT
Our factory, which originated in 1999, understands that long-haul durability is non-negotiable for the North American market. We focus on offering products that are built to withstand extreme road environments, helping businesses keep costs in check without compromising on safety.
Our product catalog features several solutions specifically designed to meet these visibility requirements:

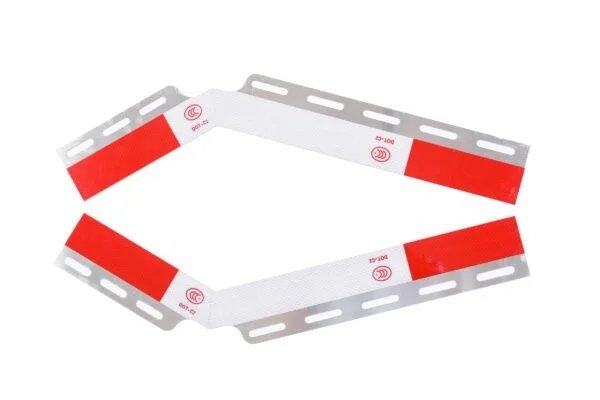

Aluminum Alloy Reflector Plates (XKJ-MFS-Q24AL): These plates offer a net weight of 0.5 kg and provide a rigid, flat surface for reflective strips, ensuring the tape remains visible and does not wrinkle or peel off.
Aluminum Mud Flap Hanger Reflector Plates (XKJ-MFS-S24AL): Specifically designed for hanger mounting, these plates (0.4 kg net weight) ensure that the mudflap reflector remains in a fixed, legal position regardless of the flap’s movement.

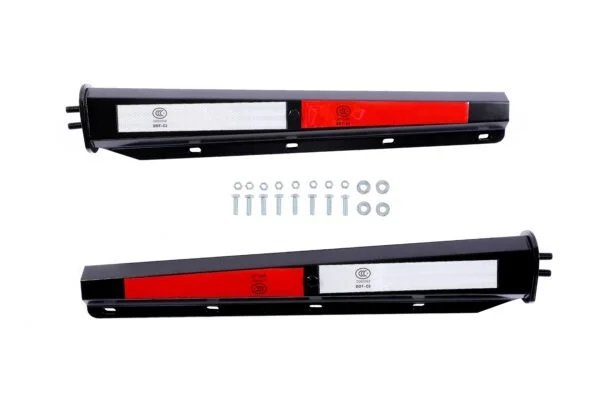

Black Mud Flap Hanger Set with Reflector Tape (XKJ-MFH-03-1/8): This set integrates the reflective element directly into the hanger hardware, ensuring that rear visibility is maintained even if the mud flap itself is damaged.
Comparative Analysis of Reflective Solutions
| Solution Type | Durability | Installation | Best Use Case |
| Standard Adhesive Tape | Moderate (may peel) | Direct application | Trailer sides |
| Aluminum Reflector Plates (XKJ-MFS-Q24AL) | High (corrosion resistant) 1313 | Bolted to hardware | Rear mud flap areas |
| Reflective Mud Flap Hangers (XKJ-MFH-03-1/8) | Maximum (structural) 14 | Part of frame assembly | Heavy-duty semi-trucks |
Technical Deep Dive: Mud Flap Hanger Specifications
For the North American market, the strength of the hanger is as important as the visibility of the reflector. Heavy-duty vehicles require hangers that can withstand high-vibration environments without sagging, which would alter the angle of reflection.
Angled vs. Straight Bar Hangers
Angled Bar Truck Hangers with Reflector Plates (XKJ-MFH-Q3C): These sets come equipped with integrated reflector plates and have a gross weight of 8.25 kg. They provide the necessary tension and weight to keep the mud flap reflective strips in the correct legal orientation.
Straight Bar Mud Flap Hanger Bracket Kits (XKJ-MFH-SBK): A lighter option (5.88 kg gross weight) suitable for standard trailer configurations where horizontal alignment is prioritized.
Heavy Duty Mud Flap Hanger Sets (XKJ-MFH-01-SS-1/8): For maximum durability, these sets weigh 9.8 kg (gross) and are designed for the most demanding long-haul environments.
Material Quality and Performance
US TRUCK GOAT utilizes stamped steel bases, cast iron, and high-grade aluminum to ensure that our hangers do not sag over time. A sagging hanger changes the “angle of incidence” for the reflective material, potentially taking it out of the legal range required by DOT inspectors. Our ISO 9001-certified production process ensures consistent quality across all components.
Installation and Maintenance Standards for 2026
Proper installation is the difference between a compliant fleet and a liability.
Surface Preparation
Before applying any mud flap reflective strips or mounting a mudflap reflector plate, the substrate must be thoroughly cleaned. Aluminum alloy surfaces, such as those used in our XKJ-MFS-Q24AL plates, are ideal for long-term adhesion because they do not rust or flake like untreated steel.
Height and Angle Requirements
· Ground Clearance: Mud flaps and their hangers must be positioned to prevent spray while ensuring the reflective elements are within the sightline of standard passenger vehicle headlights.
Angle of Incidence: Reflective plates, such as those found on the Angled Mud Flap Support Bar (XKJ-MFH-S2C), are engineered to maintain a specific angle, ensuring that light is reflected back to the source effectively.
Sourcing and Supply Chain Reliability
For B2B wholesalers, the reliability of a manufacturer is paramount. US TRUCK GOAT has been serving the trucking industry since 2000, specializing in truck fender accessories tailored for the North American and European markets.
Why Factory-Direct Expertise Matters
Supply Chain Stability: Our well-established supply chain system allows for consistent quality and timely deliveries across bulk orders.
Advanced Production: We utilize efficient production equipment and highly skilled technical personnel to produce components that meet precision requirements.
Quality Certification: Our operations are certified under the ISO9001 management system, providing peace of mind to our global partners.
Competitive Pricing: We provide high-quality wholesale parts at affordable rates, helping businesses keep their costs in check.
Conclusion: A Strategic Approach to Conspicuity
A single check does not handle DOT tape rules – staying compliant means checking items regularly. Using strong overseas hangers for truck mud flaps helps meet safety norms under FMVSS 108. When these parts pair with angled reflectors built to last, fleets keep their vehicles running longer between repairs. Rruck mud flap reflectors placement matters less than choosing setups tough enough for constant use. Shifting wear patterns show how weak fasteners fail faster than expected. Over months, rust buildup weakens metal until it snaps without warning. Using proper hardware changes whether operations run smoothly afterward. Even slight misalignments cause problems once season changes take hold.
With next year coming into view, reliability now matters more than just meeting basic rules. Working alongside a supplier such as US TRUCK GOAT – seasoned for two decades – helps lock down performance. Instead of settling for average parts, you might need large supplies of lightweight reflective panels made from aluminum alloy. Customized strong-arm fixtures built tough from the start fit certain needs well. Building quality piece by piece pays off later when operations run smoother under pressure.
